Product Summary

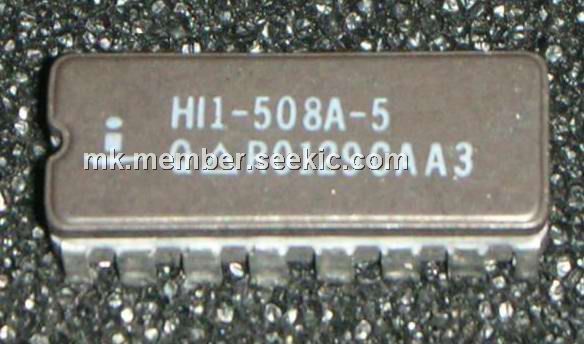

The HI1-508A-5 is an analog multiplexer with active overvoltage protection. Analog input levels may greatly exceed either power supply without damaging the HI1-508A-5 or disturbing the signal path of other channels. Active protection circuitry assures that signal fidelity is maintained even under fault conditions that would destroy other multiplexers. Analog inputs can withstand constant 70VP-P levels with ±15V supplies. Digital inputs will also sustain continuous faults up to 4V greater than either supply. Applications of the HI1-508A-5 include: Data Acquisition Systems, Industrial Controls, Telemetry.
Parametrics
HI1-508A-5 absolute maximum ratings: (1)V+ to V-: +44V; (2)V+ to GND: +22V; (3)V- to GND: -25V; (4)Digital Input Voltage (VEN, VA): (V-) -4V to (V+) +4V or 20mA, Whichever Occurs First; (5)Analog Signal (VIN, VOUT): (V-) -20V to (V+) +20V; (6)Continuous Current, IN or OUT: 20mA; (7)Peak Current, IN or OUT, Pulsed 1ms, 10% Duty Cycle (Max): 40mA.
Features
HI1-508A-5 features: (1)Analog Overvoltage: 70VP-P; (2)No Channel Interaction During Overvoltage; (3)Maximum Power Supply: 44V; (4)Fail Safe with Power Loss (No Latch-Up); (5)Break-Before-Make Switching; (6)Analog Signal Range: ±15V; (7)Access Time: 500ns; (8)Power Dissipation: 7.5mW.

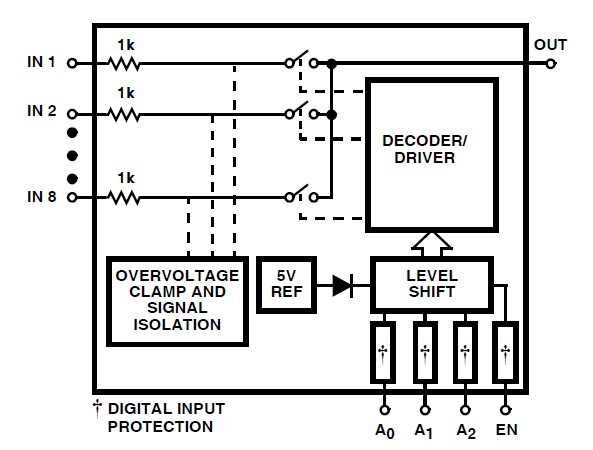

Diagrams
 |
