Product Summary

The MC4350L is a monolithic integrated circuit. It combines the functions of a binary coded decimal counter, a four-bit latch, and a seven-segment decoder/driver. The MC4350L is designed for counting applications such as frequency counters, the circuit contains a leading zero blanking feature activated through the reset input.

Parametrics

MC4350L specification: (1)Total power dissipation=450mW typ/package; (2)Maximum toggle frequency=40MHz typ.

Diagrams

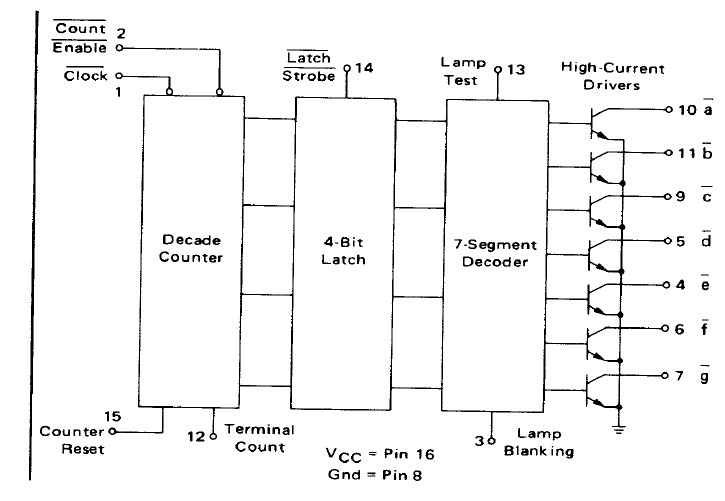

MC4350L diagram
