Product Summary

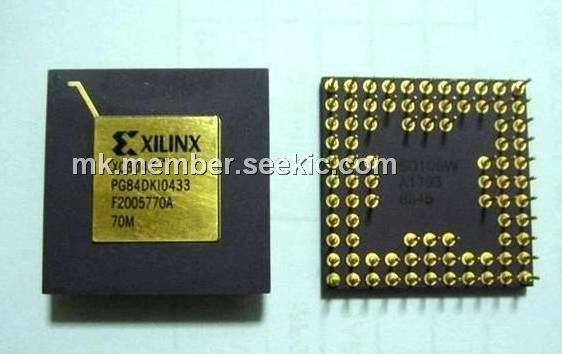

The XC3042-70PG84M is a Field Programmable Gate Array.
Parametrics
XC3042-70PG84M specifications: (1)Military/High-Rel: N; (2)Tech.: CMOS; (3)Gate Capacity: 4200; (4)Configurable Logic Blocks: 144; (5)Number of User I/Os: 74; (6)Program Data (Bits): 30784; (7)Logic Level Family: CMOS and T; (8)Maximum Toggle Rate: 70M; (9)VOL Max.: 0.4; (10)@Iol (A): 4.0m; (11)VOH Min.: 3.76; (12)@IOH (test): 4.0m; (13)VIH Min. (TTL) (V): 2.0; (14)VIL Max. (TTL) (V): 0.8; (15)VIH Min. (CMOS) (V): 3.5; (16)VIL Max. (CMOS) (V): 1.0; (17)Vsup (+) Maximum (V): 7.0; (18)Digital Input V Max (V): 7.5; (19)Nom. Pos. Supp: 5; (20)Quiescent Current Max (CMOS): 500u; (21)Quiescent Current Max (TTL): 10m; (22)Minimum Operating Temp (℃): -55; (23)Maximum Operating Temp (℃): 125; (24)JEDEC Std 30 Outline Code: S-CPGA-P; (25)Package Body Material: Ceramic; (26)Package Style: PGA; (27)Mounting Style: T; (28)# Pins: 85.
 |
