Product Summary
The TLP627 is a photocoupler. It consists of a gallium arsenide infrared emitting diode optically coupled to a darlington connected phototransistor which has an integral base-emitter resistor to optimize switching speed and elevated temperature characteristics.
Parametrics
TLP627 absolute maximum ratings: (1)Forward Current: 60 mA; (2)Forward Current Derating: -0.7 (Ta≥53℃) mA/℃; (3)Pulse Forward Current: 1 A; (4)Reverse Voltage: 5 V; (5)Junction Temperature: 125 ℃; (6)Collector-Emitter Voltage: 300 V; (7)Emitter-Collector Voltage: 0.3 V; (8)Collector Current: 150 mA; (9)Collector Power Dissipation: 150 mW; (10)Collector Power Dissipation Derating(Ta≥25℃: -1.5 mW /℃.
Features
TLP627 features: (1)Collector-Emitter Voltage: 300V(Min); (2)Current Transfer Ratio: 1000%(Min); (3)Isolation Voltage: 5000Vrms(Min); (4)UL Recognized: UL1577,File No.E67349.

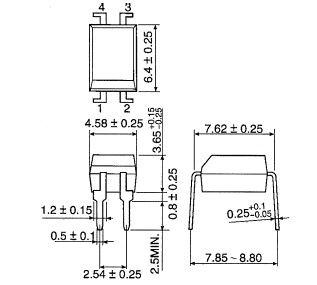

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP627 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
TLP627(F) |
Toshiba |
Transistor Output Optocouplers 300V Photocoupler 5000 Vrms 150 IC |
Data Sheet |
|
|
||||||||||||
|
TLP627(F,T |
Toshiba |
Transistor Output Optocouplers INCORRECT MOUSER P/N |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP627(F,T) |
Toshiba |
Transistor Output Optocouplers 300Vceo 5000Vrms |
Data Sheet |
|
|
||||||||||||
|
TLP627(TP1) |
|
PHOTOCOUPLER DARL TRANS-OUT 4SMD |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP627(TP1,F) |
Toshiba |
Transistor Output Optocouplers 300V Phototransistor 5000 Vrms 60 IF |
Data Sheet |
|
|
||||||||||||
|
TLP627(TP1,F,T) |
Toshiba |
Transistor Output Optocouplers DARL. HI Vceo (300Vmin) |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP627(TP1,T) |
|
PHOTOCOUPLER DARL TRANS-OUT 4SMD |
Data Sheet |
Negotiable |
|
||||||||||||
