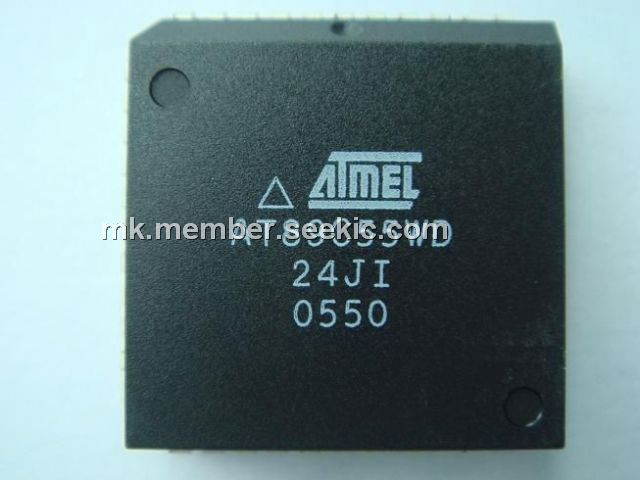

AT89C55WD-24JI

high-performance CMOS 8-bit microcontroller, 24MHZ, 44PLCC, 20K, 4V to 5.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $15.00~16.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $15.00~16.00

PartNumber:: AT89C55WD-24JI

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Marissa Zhong's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-15

From Other Seller

Part Number:AT89C55WD-24JI
US $15.00 - 16.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT89C55WD-24JI is a low-power, high-performance CMOS 8-bit microcontroller with 20K bytes of Flash programmable read only memory and 256 bytes of RAM. The device is manufactured using the high-density nonvolatile memory technology of Atmel and is compatible with the industry standard 80C51 and 80C52 instruction set and pinout. By combining a versatile 8-bit CPU with Flash on a monolithic chip, the AT89C55WD-24JI is a powerful microcomputer which provides a highly flexible and cost effective solution to many embedded control applications.

Parametrics

AT89C55WD-24JI absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.6V; (5)DC Output Current: 15.0 mA.

Features

AT89C55WD-24JI features: (1)20K Bytes of Reprogrammable Flash Memory; (2)Endurance: 1000 Write/Erase Cycles; (3)4V to 5.5V Operating Range; (4)Fully Static Operation: 0 Hz to 33 MHz; (5)Three-level Program Memory Lock; (6)256 × 8-bit Internal RAM; (7)32 Programmable I/O Lines; (8)Three 16-bit Timer/Counters; (9)Eight Interrupt Sources; (10)Programmable Serial Channel; (11)Low-power Idle and Power-down Modes; (12)Interrupt Recovery from Power-down Mode; (13)Hardware Watchdog Timer; (14)Dual Data Pointer; (15)Power-off Flag.
