Product Summary

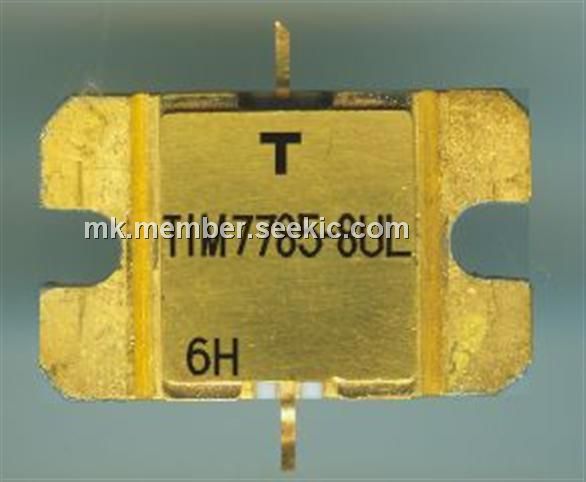

The TIM7785-8UL is a microwave power GaAs FET.
Parametrics
TIM7785-8UL absolute maximum ratings: (1)Drain-Source Voltage VDS: 15 V; (2)Gate-Source Voltage VGS: -5 V; (3)Drain Current IDS: 7.0 A; (4)Total Power Dissipation (Tc= 25 ℃) PT: 37.5 W; (5)Channel Temperature Tch: 175 ℃; (6)Storage Tstg: -65 to +175 ℃.
Features
TIM7785-8UL features: (1)high power: P1dB=39.5dBm at 7.7GHz to 8.5GHz; (2)broad band internally matched; (3)high gain: G1dB= 8.5dB at 7.7GHz to 8.5GHz; (4)hermetically sealed package.

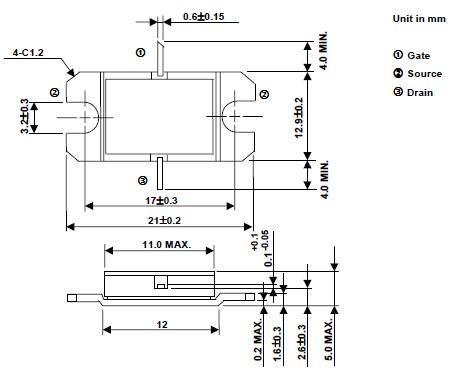

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIM7785-8UL |
Other |
|
Data Sheet |
Negotiable |
|
||||
