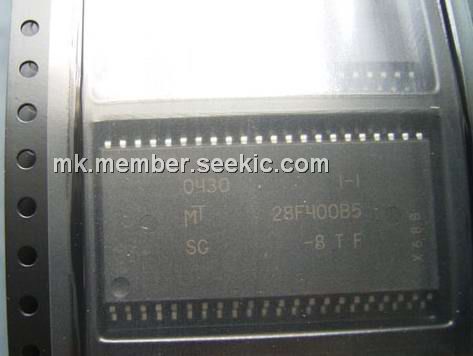

MT28F400B5

electrically block-erasable, read-only memory, SOP-44, 4Mb, 5V ±10%, 1W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.50

PartNumber:: MT28F400B5

Brand:: Micron Technology - MT | Pack: SOP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Marissa Zhong's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-15

From Other Seller

Part Number:MT28F400B5
US $1.00 - 1.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MT28F400B5 is an nonvolatile, electrically block-erasable (Flash), programmable, read-only memory containing 4,194,304 bits organized as 262,144 words (16 bits) or 524,288 bytes (8 bits). Writing or erasing the MT28F400B5 is done with a 5V VPP voltage, while all operations are performed with a 5V VCC. Due to process technology advances, 5V VPP is optimal for application and production programming. The MT28F400B5 is fabricated with Micron’s advanced 0.18µm CMOS floating-gate process.

Parametrics

MT28F400B5 absolute maximum ratings: (1)Voltage on VCC Supply Relative to VSS: -0.5V to +6V; (2)Input Voltage Relative to VSSP: -0.5V to +6V; (3)VPP Voltage Relative to VSS: -0.5V to +5.5V; (4)RP# or A9 Pin Voltage Relative to Vss: -0.5V to +12.6V; (5)Temperature Under Bias: -40 to +85℃; (6)Storage Temperature (plastic): -55 to +125℃; (7)Power Dissipation: 1W.

Features

MT28F400B5 features: (1)Seven erase blocks: 16KB/8K-word boot block (protected); Two 8KB/4K-word parameter blocks; Four main memory blocks; (2)Smart 5 technology (B5): 5V ±10% VCC; 5V ±10% VPP application/production programming1; (3)Advanced 0.18μm CMOS floating-gate process; (4)Compatible with 0.3μm Smart 5 device; (5)Address access time: 80ns; (6)100,000 ERASE cycles; (7)Industry-standard pinouts; (8)Inputs and outputs are fully TTL-compatible; (9)Automated write and erase algorithm; (10)Two-cycle WRITE/ERASE sequence; (11)Byte- or word-wide READ and WRITE (MT28F400B5, 256K x 16/512K x 8); (12)Byte-wide READ and WRITE only (MT28F004B5, 512K x 8); (13)TSOP and SOP packaging options.
