Product Summary

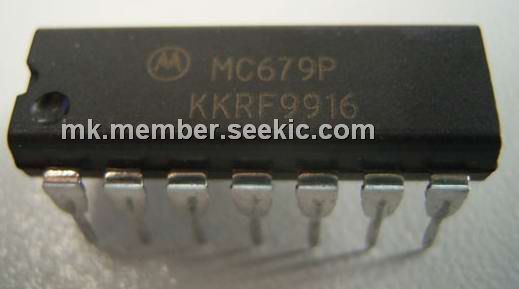

The MC679P is a MHTL integrated circuit. The MC679P is especially designed to meet the requirements of industrial applications because of the outstanding noise immunity. The circuit provides error-free operation in high noise environments far beyond the tolerance of other integrated circuit famlies. Multifunction packages and broad operating temperature range further tailor the MC679P to the requirement of industrial designer.
Parametrics
MC679P absolute maximum ratings: (1)power supply voltage, VCC: 18V when continous; 20V when pulsed, 1.0s; (2)input voltage, Vin: -1.0 to 18V; (3)output current (into outputs): 30mA; (4)input reverse current @ 18V, IR: 0.5mA; (5)forward current (individual), IF: 30mA; (6)operating temperature range, TA: -30 to 75℃; (7)storage temperature range, Tstg: -55 to 125℃.
Features
MC679P features: (1)especially designed to meet the requirements of industrial applications; (2)outstanding noise immunity; (3)provides error-free operation in high noise environments.

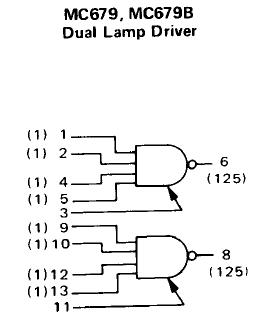

Diagrams
 |
