AD2S80ALD

Product Summary

The AD2S80ALD is a monolithic 10-, 12-, 14- or 16-bit tracking resolver-to-digital converter contained in a 40-pin DIP or 44-pin LCC ceramic package. It is manufactured on a BiMOS II process that combines the advantages of CMOS logic and bipolar high accuracy linear circuits on the same chip. The AD2S80ALD allows users to select their own resolution and dynamic performance with external components. This allows the users great flexibility in defining the converter that best suits their system requirements. The converter allows users to select the resolution to he 10, 12, 14 or 16 bits and to track resolver signals rotating at up to 1040 revs per second(62,400 rpm) when set to 10-bit resolution. The applications of the AD2S80ALD include: DC Brushless and AC Motor Control, Process Control, Numerical Control of Machine Tools, Robotics, Axis Control, Military Servo Control.

Parametrics

AD2S80ALD absolute maximum ratings: (1)VS2: +14 V dc; (2)–VS: –14 V dc; (3)+VL: +VS; (4)Reference: +14 V to –VS; (5)SIN: +14 V to –VS; (6)COS: +14 V to –VS; (7)Any Logical Input: –0.4 V dc to +VL dc; (8)Demodulator Input: +14 V to –VS; (9)Integrator Input: +14 V to –VS; (10)VCO Input: +14 V to –VS; (11)Power Dissipation: 860 mW; (12)Operating Temperature, Commercial (JD, KD, LD): 0℃ to +70℃; (13)Industrial (AD, BD): –40℃ to +85℃; (14)Extended (SD, SE, TD, TE, UD, UE): –55℃ to +125℃; (15)qJC3 (40-Pin DIP 883 Parts Only): 11℃/W; (16)qJC3 (44-Pin LCC 883 Parts Only): 10℃/W; (17)Storage Temperature (All Grades): –65℃ to +150℃; (18)Lead Temperature (Soldering, 10 sec): +300℃.

Features

AD2S80ALD features: (1)Monolithic (BiMOS ll) Tracking R/D Converter, 40-Pin DIP Package; 44-Pin LCC Package; (2)10-,12-,14- and 16-Bit Resolution Set by User; (3)Ratiometric Conversion; (4)Low Power Consumption: 300 mW typ; (5)Dynamic Performance Set by User; (6)High Max Tracking Rate 1040 RPS (10 Bits) Velocity Output; (7)Industrial Temperature Range Versions; (8)Military Temperature Range Versions; (9)ESD Class 2 Protection (2,000 V min)/883 B Parts Available.

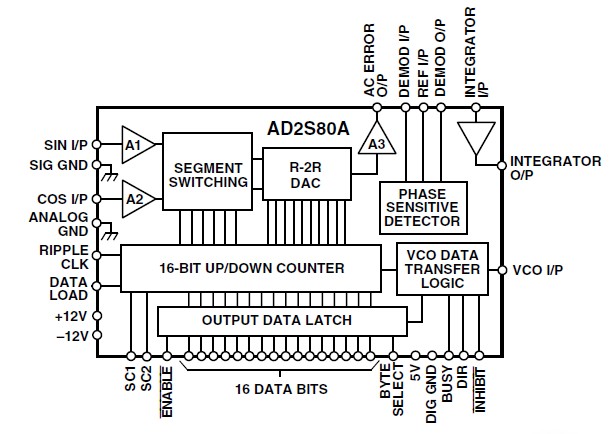

Diagrams
