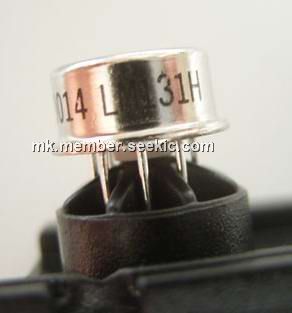

LM131H

voltage-to-frequency converter, CAN-8, 40V, 670 mW, 1 Hz to 100 kHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~5.00

PartNumber:: LM131H

Brand:: National Semiconductor - NS | Pack: CAN | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Marissa Zhong's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-15

From Other Seller

Part Number:LM131H
US $3.00 - 5.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

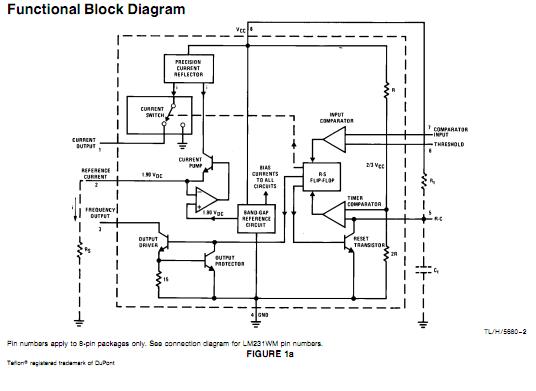

The LM131H is a voltage-to-frequency converter ideally suited for use in simple low-cost circuits for analog-to-digital conversion, precision frequency-to-voltage conversion, long-term integration, linear frequency modulation or demodulation, and many other functions. The output when used as a voltage-to-frequency converters a pulse train at a frequency precisely proportional to the applied input voltage. Thus, the LM131H provides all the inherent advantages of the voltage-to-frequency conversion techniques, and is easy to apply in all standard voltage-to-frequency converter applications. Further, the LM131H attains a new high level of accuracy versus temperature which could only be attained with expensive voltage-to-frequency modules. Additionally the LM131H is ideally suited for use in digital systems at low power supply voltages and can provide low-cost analog-to-digital conversion in microprocessor-controlled systems.

Parametrics

LM131H absolute maximum ratings: (1)Supply Voltage: 40V; (2)Output Short Circuit to Ground: Continuous; (3)Output Short Circuit to VCC: Continuous; (4)Input Voltage: -0.2V to VS; (5)Operating Ambient Temperature Range: -55 to 125℃; (6)Power Dissipation (PD at 25℃), PD: 670 mW; (7)Lead Temperature (Soldering, 10 sec.): 260℃; (8)ESD Susceptibility: 2000V.

Features

LM131H features: (1)Guaranteed linearity 0.01% max; (2)Improved performance in existing voltage-to-frequency conversion applications; (3)Split or single supply operation; (4)Operates on single 5V supply; (5)Pulse output compatible with all logic forms; (6)Excellent temperature stability, ±50 ppm/℃ max; (7)Low power dissipation, 15 mW typical at 5V; (8)Wide dynamic range, 100 dB min at 10 kHz full scale frequency; (9)Wide range of full scale frequency, 1 Hz to 100 kHz; (10)Low cost.
