Product Summary
The LM110J/883B is a monolithic operational amplifier internally connected as unity-gain non-inverting amplifier. It uses super-gain transistors in the input stage to get low bias current without sacrificing speed. Directly interchangeable with 101, 741 and 709 in voltage follower applications, the LM110J/883B has internal frequency compensation and provision for offset balancing. The LM110J/883B is useful in fast sample and hold circuits, active filters, or as general-purpose buffers. Further, the frequency response is sufficiently better than standard IC amplifiers that the followers can be included in the feedback loop without introducing instability.
Parametrics
LM110J/883B absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Power Dissipation: 500 mW; (3)Input Voltage: ±15V; (4)Output Short Circuit Duration: Indefinite; (5)Operating Temperature Range: -55℃ to +125℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Lead Temperature (Soldering, 10 sec.): 260℃; (8)Dual-In-Line Package Soldering (10 sec.): 260℃.
Features
LM110J/883B features: (1)Input current: 10 nA max over temperature; (2)Small signal bandwidth: 20 MHz; (3)Slew rate :30 V/μs; (4)Supply voltage range: ±5V to ±18V.

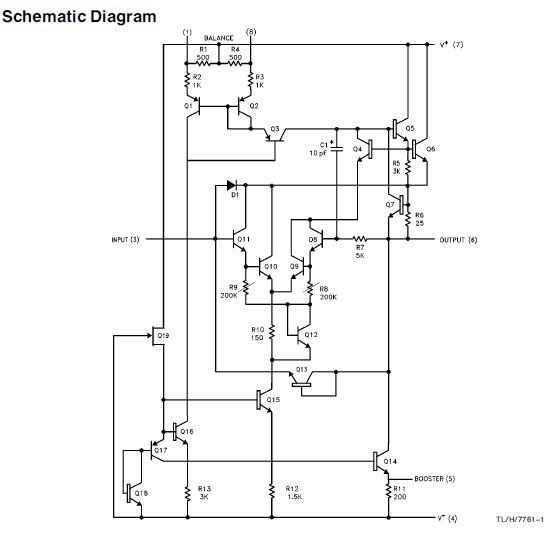

Diagrams
 |
