Product Summary

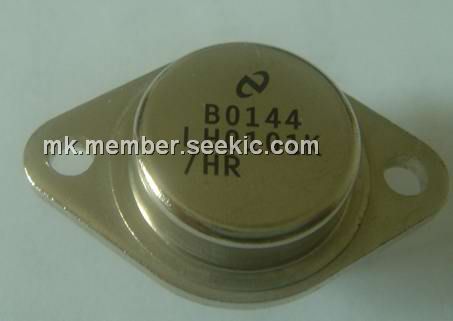

The LH0101K is a wideband power operational amplifier featuring FET inputs, internal compensation, virtually no cross-over distortion, and rapid settling time. These features make the LH0101K an ideal choice for DC or AC servo amplifiers, deflection yoke drives, programmable power supplies, and disk head positioner amplifiers. The LH0101K is packaged in an 8 pin TO-3 hermetic package, rated at 60 watts with a suitable heat sink.

Parametrics

LH0101K absolute maximum ratings: (1)Supply Voltage, VS: ±22V; (2)Power Dissipation at TA = 25℃, PD: 5W; (3)Power Dissipation at TC = 25℃: 62W; (4)Differential Input Voltage, VIN: ±40V but < ±VS; (5)Input Voltage Range, VCM: ±20V but < ±VS; (6)Peak Output Current (50 ms pulse), IO(PK): 5A; (7)Operating Temperature Range, TA: -55 to 125℃; (8)Storage Temperature Range, TSTG: -65 to 150℃; (9)Maximum Junction Temperature, TJ: 150℃; (10)Lead Temperature (Soldering k10 sec.): 260℃.

Features

LH0101K features: (1)5 Amp peak, 2 Amp continuous output current; (2)300 kHz power bandwidth; (3)850 mW standby power (g15V supplies); (4)300 pA input bias current; (5)10 V/ms slew rate; (6)Virtually no crossover distortion; (7)2 ms settling time to 0.01%; (8)5 MHz gain bandwidth.

Diagrams

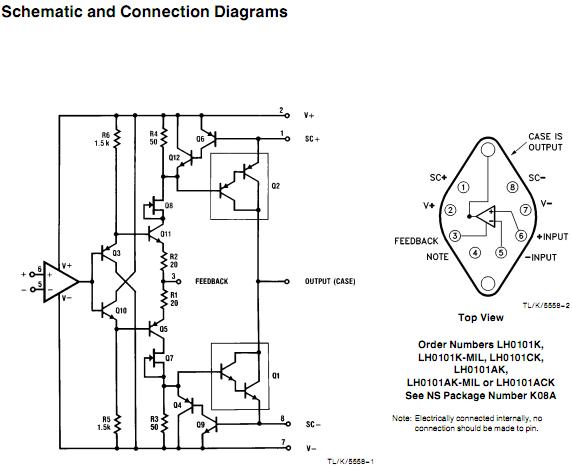

LH0101K schematic and connection diagram

LH0101AK-MIL_1230075
LH0101AK-MIL_1230075
