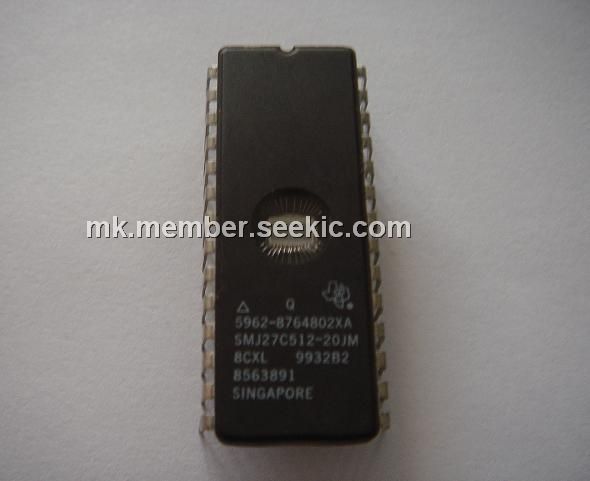

Product Summary

The 5962-8764802XA is an EPROM. It is available for use by all departments and agencies of the department of defense.

Parametrics

5962-8764802XA absolute maximum ratings: (1)Storage temperature range: -65℃ to +150℃; (2)Input voltages with respect to ground: -0.6V dc to +6.25V dc; (3)Out voltages with respect to ground: -0.6V dc to +6.25V dc; (4)Voltage on pin A9 with respect to ground: -0.6V dc to +13.5V dc; (5)VPP supply voltage with respect to ground: -0.6V dc to +14.0V dc; (6)Power dissipation(PD): 350mW; (7)Lead temperature: 300℃; (8)Junction temperature(Tj): +150℃.

Features

5962-8764802XA electrical characteristics: (1)Input leakage current: ILI: -10 to +10μA; (2)Output leakage current: ILO: -10 to +10μA; (3)Operating current ICC1: 60mA; (4)Standby current ICC3: 325μA; (5)Input low voltage VIL: -0.1 to 0.8V; (6)Input high voltage VIH: 2.0 to VCC+1.0 V; (7)Output low voltage VOL: 0.45V; (8)output high voltage VOH: 2.4V; (9)Input capacitance CIN: 12pF; (10)Output capacitance COUT: 12pF.

Diagrams

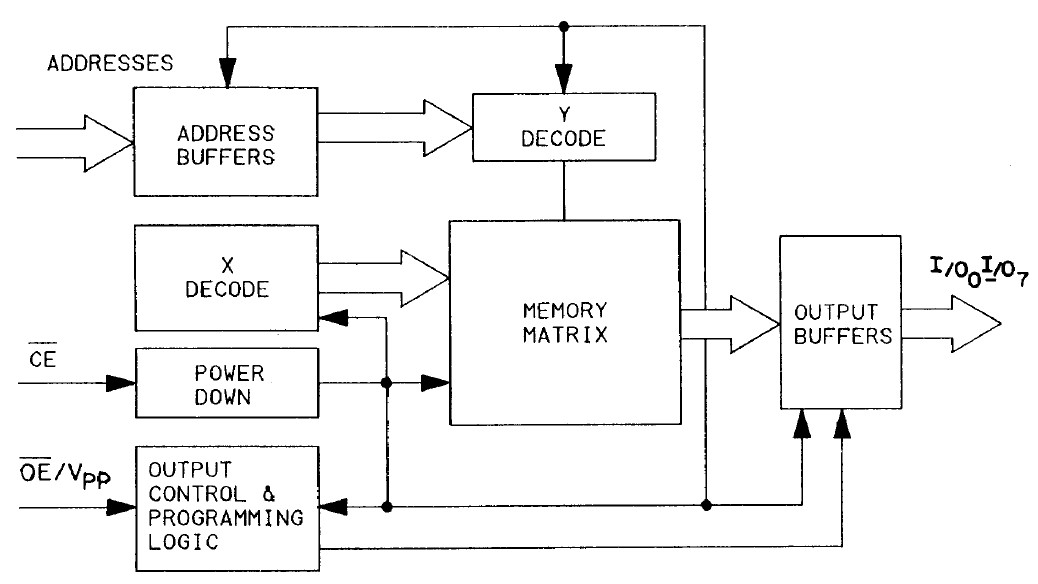

5962-8764802XA block diagram
