Product Summary

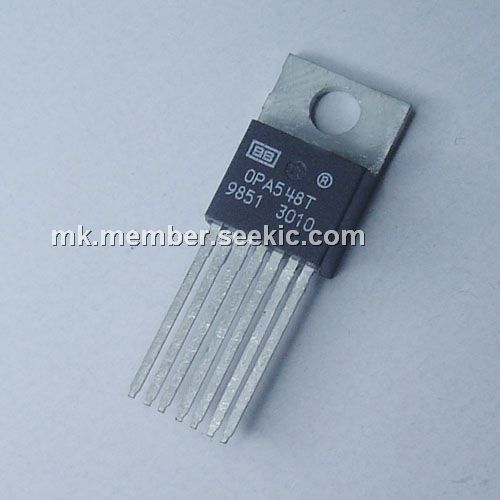

The OPA548T is a low cost, high-voltage/high-current operational amplifier ideal for driving a wide variety of loads. A laser-trimmed monolithic integrated circuit provides excellent low-level signal accuracy and high output voltage and current. The OPA548T operates from either single or dual supplies for design flexibility. In single supply operation, the input common-mode range extends below ground. The OPA548T is internally protected against overtemperature conditions and current overloads. In addition, the OPA548T was designed to provide an accurate, user-selected current limit. Unlike other designs which use a “power” resistor in series with the output current path, the OPA548T senses the load indirectly. Applications include: (1)valve, actuator driver; (2)synchro, servo driver; (3)power supplies; (4)test equipment; (5)transducer excitation; (6)audio amplifier.
Parametrics
OPA548T absolute maximum ratings: (1)Output Current: See SOA Curve; (2)Supply Voltage, V+ to V–: 60V; (3)Input Voltage: (V–)–0.5V to (V+)+0.5V; (4)Input Shutdown Voltage: V+; (5)Operating Temperature: –40℃ to +125℃; (6)Storage Temperature: –55℃ to +125℃; (7)Junction Temperature: 150℃; (8)Lead Temperature (soldering 10s): 300℃.
Features
OPA548T features: (1)Wide supply range: Single Supply: +8V to +60V; DuaSupply: ±4V to ±30V; (2)High output current: 3A Continuous; 5A Peak; (3)Wide output voltage swing; (4)Fully protected: Therma Shutdown; Adjustable Current Limit; (5)Output disable control; (6)Thermal shutdown indicator; (7)High slew rate: 10V/ms; (8)Low quiescent current.
Diagrams
