Product Summary
The LH0041CG is a general purpose operational amplifier capable of delivering large output currents not usually associated with conventional IC Op Amps. The LH0041CG will provide output currents in excess of one ampere at voltage levels of ±12V. In addition, both the inputs and outputs are protected against overload. The LH0041CG is compensated with a single external capacitor and are free of any unusual oscillation or latch-up problems.
Parametrics
LH0041CG absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Differential Input Voltage: ±30V; (3)Input Voltage: ±15V; (4)Peak Output Current: 0.5 Amps; (5)Output Short Circuit Duration: Continuous; (6)Operating Temperature Range: -25 to 85℃; (7)Storage Temperature Range: -65 to 150℃; (8)Lead Temperature (Soldering, 10 sec.): 300℃.
Features
LH0041CG features: (1)Output current: 0.2 Amp; (2)Output voltage swing: ±14V into 100Ω; (3)Wide full power bandwidth 15 kHz; (4)Low standby power 100 mW at ±15V; (5)Low input offset voltage and current 1 mV and 20 nA; (6)High slew rate 3.0V/μs; (7)High open loop gain 100 dB.

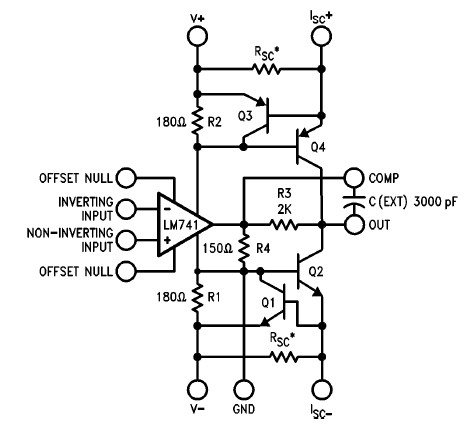

Diagrams
 |
