Product Summary

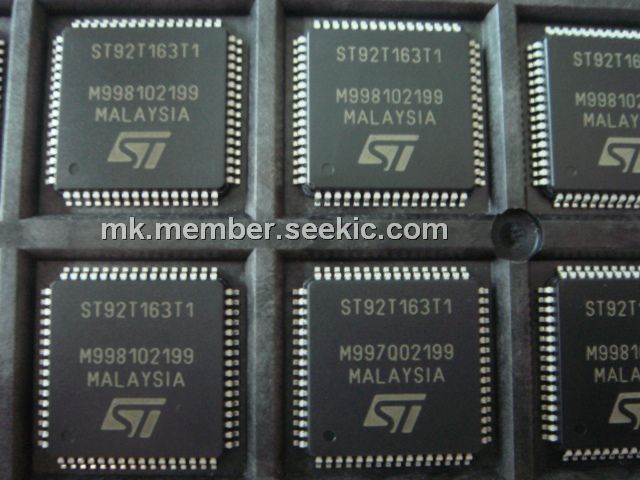

The ST92T163T1 is an 8/16-bit full speed USB MCU for composite devices with 16 endpoints. It brings the enhanced ST9 register based architecture to a new range of high performance microcontrollers specifically designed for USB (Universal Serial Bus) applications.
Parametrics
ST92T163T1 absolute maxing ratings: (1)VDD Supply Voltage: -0.3 to +7.0 V; (2)VI Input Voltage: -0.3 to VDD +0.3 V; (3)VAI Analog Input Voltage (A/D Converter): VSS - 0.3 to VDD +0.3/AVSS - 0.3 to AVDD +0.3 V; (4)VO Output Voltage: -0.3 to VDD +0.3 V; (5)TSTG Storage Temperature: -55 to + 150 ℃; (6)IINJ Pin Injection Current Digital and Analog Input: -5 to +5 mA; (7)Maximum Accumulated Pin injection Current in the device: -50 to +50 mA; (8)AVDD A/D Converter Analog Reference VDD: -0.3 to VDD +0.3 V; (9)AVSS A/D Converter VSS VSS: -0.3 to VSS +0.3 V.
Features
ST92T163T1 features: (1)Internal Memories: 20 Kbytes ROM/EPROM/OTP, 2 Kbytes RAM; (2)Register oriented 8/16 bit core; (3)224 general purpose registers available as RAM, accumulators or index pointers; (4)Minimum instruction cycle time: 167 ns (@24MHz CPU frequency); (5)Low power modes: WFI, SLOW, HALT and STOP; (6)DMA controller for reduced processor overhead; (7)Full speed USB interface with DMA, compliant with USB specifications version 1.1 (in normal voltage mode).
Diagrams
 |
