Product Summary
The MAX7524UQ is a CMOS 8-bit digital-to-analog converter which will interface directly with most microprocessors. On-chip input latches make the DAC interface similar to a RAM write cycle where CS and WR are the only control inputs required. For the MAX7524UQ, +5V TTL and CMOS logic compatibility is guaranteed when using +5V power. Applications of the MAX7524UQ include: μP controlled gain, function generators, bus structured instruments, automatic test equipment, digital control systems.
Parametrics
MAX7524UQ absolute maximum ratings: (1)VDD to GND: -0.3V, 17V; (2)VREF to GND: ±25V; (3)VRFB to GND: ±25V; (4)Digital input voltage to GND: -0.3V to VDD+0.3V; (5)OUT1, OUT2 to GND: -0.3, VDD; (6)Operating temperature ranges: 0℃ to 70℃; (7)Operating temperature range: -55℃ to +125℃; (8)Storage temperature range: -65℃ to +160℃; (9)Power dissipation(any package) to +75℃: 450mW; (10)Lead temperature: 300℃.
Features
MAX7524UQ features: (1)Microprocessor compatible; (2)On-chip data latches; (3)Guaranteed monotonic over temp; (4)Low power consumption; (5)8,9 and 10-bit linearity; (6)TTL/CMOS compatible at +5V.

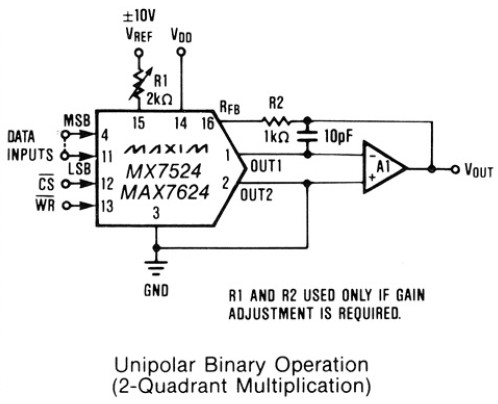

Diagrams
