Product Summary
The CY7C167A-35PC is a high-performance CMOS static RAM organized as 16,384 words by 1 bit. Easy memory expansion is provided by an active LOW Chip Enable (CE) and three-state drivers. The CY7C167A-35PC has an automatic power-down feature, reducing the power consumption by 67% when deselected. Writing to the CY7C167A-35PC is accomplished when the Chip Select (CE) and Write Enable (WE) inputs are both LOW. Data on the input pin (DI) is written into the memory location specified on the address pins (A0 through A13).
Parametrics
CY7C167A-35PC absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -55℃ to +125℃; (3)Supply Voltage to Ground Potential(Pin 20 to Pin 10): -0.5V to +7.0V; (4)DC Voltage Applied to Outputs in High Z State: -0.5V to +7.0V; (5)DC Input Voltage: -3.0V to +7.0V; (6)Output Current into Outputs (LOW): 20 mA; (7)Static Discharge Voltage(per MIL-STD-883, Method 3015): >2001V; (8)Latch-Up Current: >200 mA.
Features
CY7C167A-35PC features: (1)Automatic power-down when deselected; (2)CMOS for optimum speed/power; (3)High speed: 15 ns; (4)Low active power: 495 mW; (5)Low standby power: 220 mW; (6)TTL-compatible inputs and outputs; (7)Capable of withstanding greater than 2001V electrostatic discharge; (8)VIH of 2.2V.

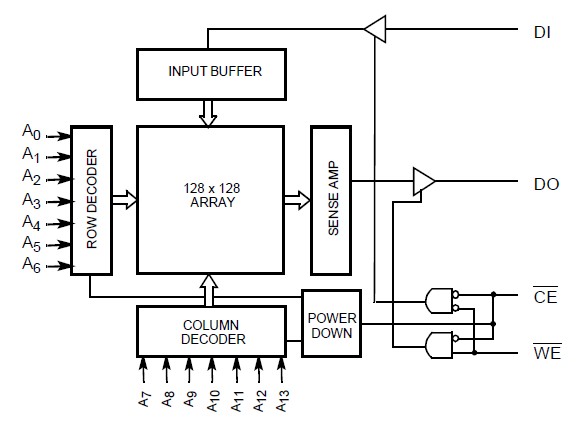

Diagrams
 |
